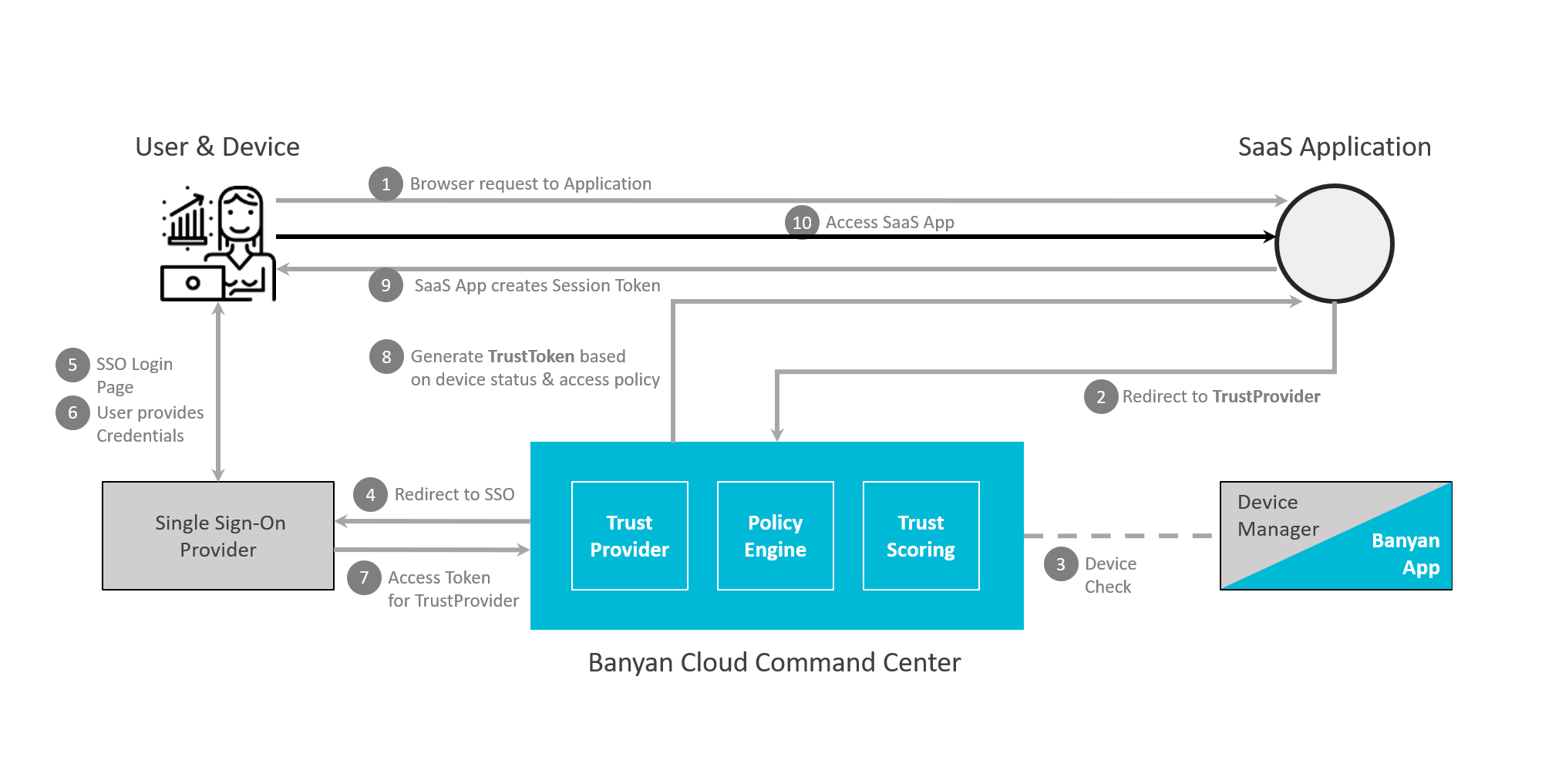

In a normal single sign-on flow, your SaaS application sends the user to your Identity Provider, which checks the password and MFA and returns a sign-on token. The IdP verifies the user’s identity — but not the device.

With IdP Federation, your IdP is configured to route that authentication through CSE’s TrustProvider before completing sign-on. CSE validates device trust — the device is registered, presents a valid certificate, and meets the Trust Level your policy requires — and then federates back to the IdP, which finishes its own steps (such as MFA). This happens on every login and is transparent to both the user and the application.

Passwordless

When Passwordless is enabled, the trusted device certificate stands in for the password. Because the certificate carries the user’s identity, CSE identifies the user from the certificate presented during the device-trust check and issues a token without prompting for a username and password; your IdP still owns any MFA.

Its purpose in this flow is twofold:

• Phishing-resistant security — a hardware-bound device certificate replaces the password, removing the credential that phishing and account-takeover attacks target.
• Better experience — users on registered devices are not prompted for a password, which also reduces password-reset load on your helpdesk.

See Passwordless authentication for details.

Underneath the vendor-specific screens, every federation setup does the same thing: it establishes a one-time trust between two parties — an identity source that authenticates the user and a relying party that accepts the result — so that at each login one side can vouch for the user to the other. No party ever stores the other’s passwords.

Configuring that trust is just a matter of exchanging a handful of values that answer four questions. The exact field names differ between SAML and OIDC, but the meaning is the same:

What CSE adds. In a plain IdP-to-application federation, the identity source only proves who the user is. CSE inserts itself into this same standard exchange and, before it issues the assertion, evaluates device trust and zero-trust policy — the device is registered, presents a valid certificate, and meets the required Trust Level. The result is that the same SAML/OIDC trust now proves the device and policy, not just the user. The per-provider guides list the specific values to exchange for each Identity Provider.

Both techniques accomplish the same goal — inserting CSE’s device-trust check into the SAML/OIDC sign-on flow — and differ only in where the federation is configured: at the SaaS application (CSE Federated) or at your Identity Provider (IdP Routed).

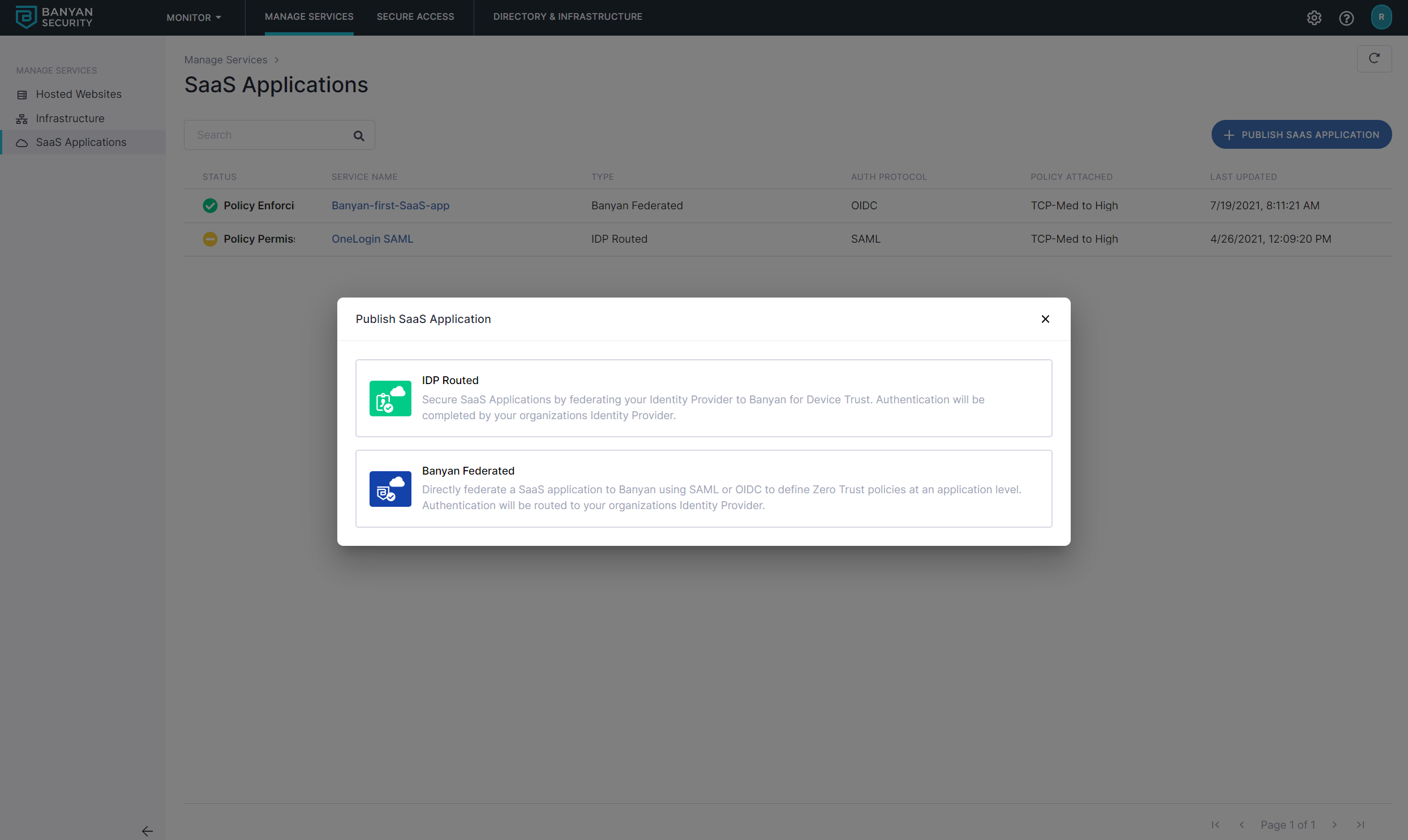

IdP Federation can be implemented in two ways:

• CSE Federated
  • In this technique, the SaaS application is configured for SAML/OIDC authentication using CSE’s TrustProvider component. Zero-trust policies can be defined for each individual SaaS application. For step-by-step instructions, see Publish a Federated SaaS App.
• IdP Routed
  • In this technique, the SaaS application is configured for SAML/OIDC authentication using your Identity Provider, and your Identity Provider is configured to federate to CSE’s TrustProvider component. Zero Trust policies are defined for groups of SaaS applications via IdP Federation logic. Because this technique configures federation inside your IdP’s own console (Okta, Microsoft Entra ID, OneLogin, Duo, or Google Workspace), follow your IdP vendor’s documentation as the source of truth for those console steps; the per-vendor pages in the sections below cover the values CSE expects you to exchange.

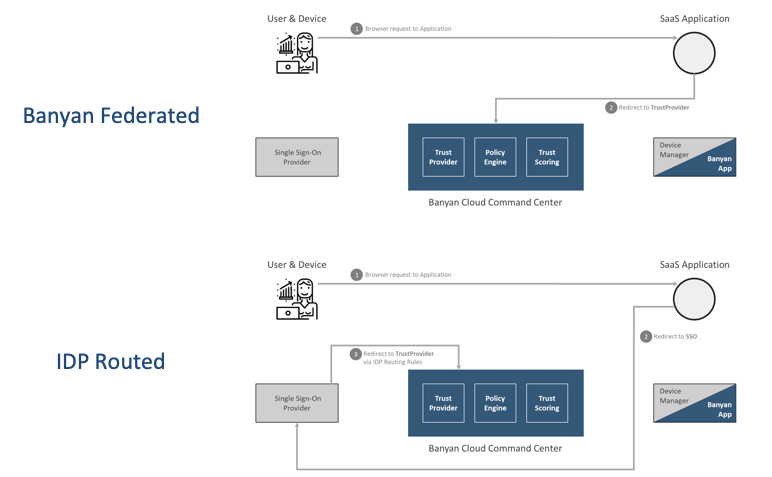

As indicated in the diagram below, the two techniques accomplish the same policy-based access objective by using slightly different authentication flows.

(The diagram uses legacy branding: “Banyan Federated” corresponds to CSE Federated, and “Banyan Cloud Command Center” corresponds to the CSE Command Center.)

The table below lists a few key considerations to take into account when deploying each technique:

When to choose each

Both routes achieve the same device-trust outcome, so the choice comes down to scale, policy granularity, and how much you are willing to change.

Choose CSE Federated when:

• You need per-application policies — a different Trust Level or rule for each app.
• You are protecting a small number of applications (~10).
• You prefer not to change your IdP, or the IdP and the application owners are managed by different teams.
• You want a small blast radius — a misconfiguration affects only that one application, not everything behind the IdP.
• Your IdP cannot cleanly federate upstream to a third-party IdP.

Choose IdP Routed when:

• You are protecting many applications (10+) and want to avoid per-app setup.
• You do not want to change each application’s SSO configuration.
• You want passwordless authentication using the device certificate.
• Population-based policy (by organizational unit or group) is sufficient — you do not need per-application rules.

Plan for onboarding and lockout with IdP Routed. IdP Routed places device registration on the sign-in critical path: a user whose device is not yet registered with CSE fails the device-trust check for every application behind the IdP. Exempt onboarding populations and a break-glass administrator account from the federated path, and, where the vendor flow supports it, roll out with a Permissive-mode Web Policy before switching to Enforcing (Entra ID instead phases rollout with Staged Rollout) — the lockout-prevention steps in the per-vendor guides cover this for each Identity Provider.

Rule of thumb: few apps, per-app policies, or “do not touch the IdP” points to CSE Federated; many apps, passwordless, and minimal per-app work points to IdP Routed.

The pages below give per-provider IdP-federation steps for the specific identity providers CSE supports. Each one applies the flow described above to that provider’s console. (For the CSE Federated walkthrough, see Publish a Federated SaaS App above.)

• Okta
• Entra ID
• OneLogin
• Duo
• Google Workspace
